Víctor Vázquez Balló > Traces, ruins & ornaments

| Víctor Vázquez Balló
| 2018 | PFC | Universitat de Girona
| Profesor: Jordi Hidalgo Tané
Belchite is a village of an altitude of 47 meters with a Surface of 27368076 km2. It passes a river called Aguasvivas. Belchite is a village which lives of agriculture, basically. In the field, there are different types of crops like olive trees, cereals, almond trees… There are also pig, poultry, sheep and cattle crops.
Belchite is known for its battle called Batalla de Belchite in the Spanish Civil War. It was a battle between republicans and the nationalists with the objective of recovering the city of Saragossa.
Logos
Ruins & Traces

Belchite is formed by two urban tissues. The first one, the ruins, are irregular but they keep the logic a main Cardus. The other tissue is formed by a regular and modular strategy. The park and the square make the urban border between the two tissues.

The ruins are of high historical value. The architecture of the ruins is of Mudejar style with baroque ornaments. The ruins are like huge scenography where only the façades are kept alive.

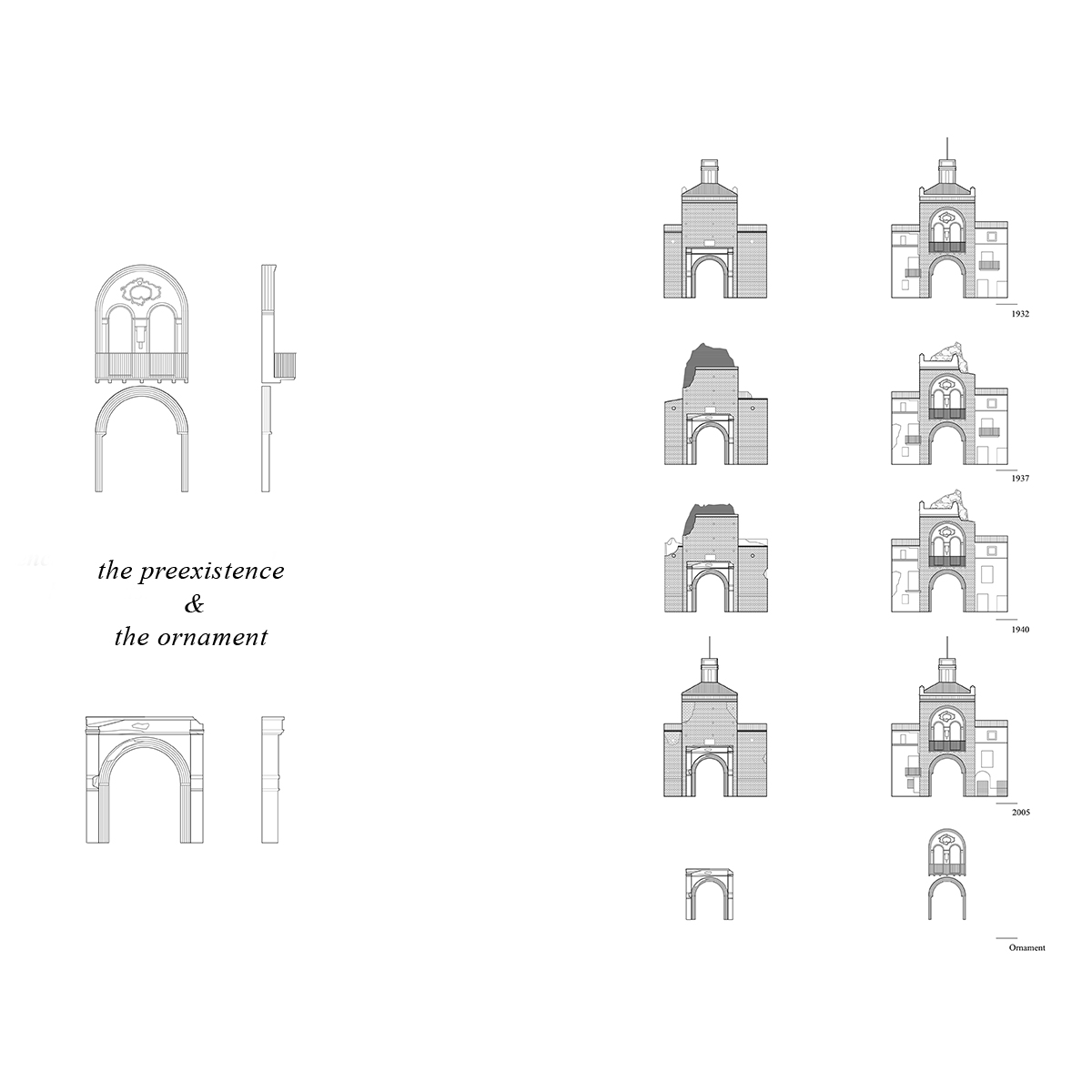

Between the new village and the ruins, there is a gate. This little but monumental building was destroyed during the Spanish Civil War. However, the ruin wasn’t because of the battle, it was eroded, mistreated and modified the years after the battle. However, the ornament was the memory of the building, it was the only piece alive. In 2005, they decided to forget the war and rebuild the building as if nothing happened before.

The project will stablish a dialogue with this architectonic piece and with the cartesian situation of the limit between ruins and not ruïns.

So, the ornament is the essence of this building. The new building will act like a large and monolithic background where the adornment is the main piece and the element which makes the building monumental.

The Specificity
Cartesian Situation

The urban strategy is to keep the memory of the place. For this reason, the building is placed closing the square, being the ornament the main element of the place.

The Program
Museum of sculptures of the Spanish Civil War,
a big warehouse of sculptures

The program of the project is based on the old Italian gipsothèques which were used as a warehouse of sculptures. The sculptures will keep the atmosphere of the moment and memory of the place.

There is a collection of sculptures of the Spanish Civil War. There are three types: the little sculpture which will have to be protected of the outdoors; the middle size nowadays situated in squares; and the big and main sculpture.

Moreover, the program includes a multipurpose room, ateliers of restauration and a file site.

The identity
The building as a ruin

The specificity of the place makes up the museum as a ruin. The idea of the project stat from the idea of the symbol of a ruin.

The organization is a deep wall where there are the services and the circulation around a big patio where there are the sculptures. The object is the relation of the wall with gravitative concrete objects which contain sculptures or light.

The time resistance
The ornament as essence

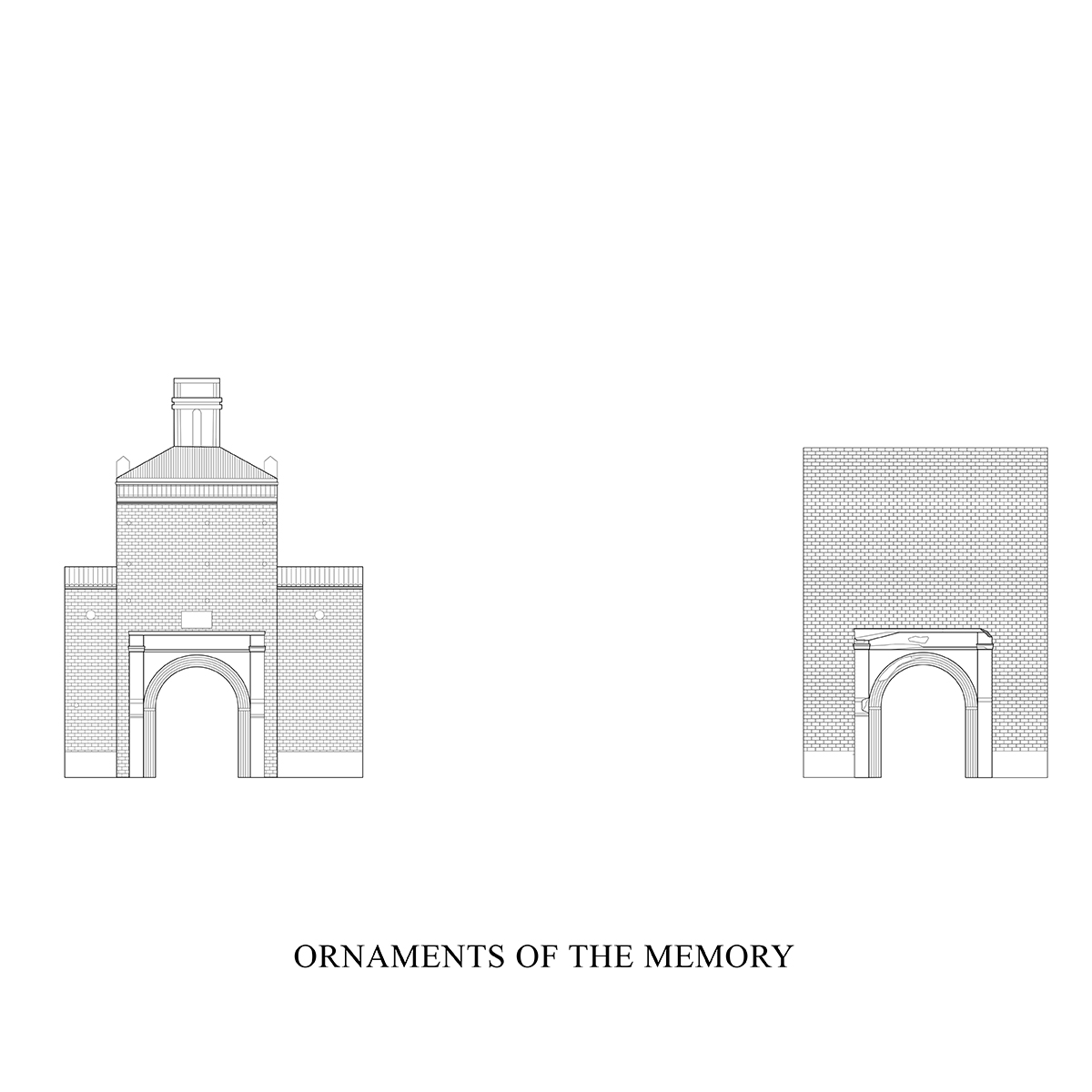

The ornament is the only remanescence part of the building after Civil War. The hall will include this element, remembering the memory of the place in the exterior and the interior. On the main façade, there is the ornament of the entrance. On the posterior façade. there is the ornament of the window and the one of the entrance too.

In between
Deep walls organize the space

The walls are the element that recreates the atmosphere of the ruïns. In Belchite, the only part that exists are the walls.

However, in this architectonic ruin, the walls contain services and storage rooms at the ground floor and circulation in the first floor. There are two stairs for the museum and one for the private circulation.
